Hydro-Sonic Scrubbers
We pride ourselves with being easy to do business with and responding quickly to our customers' needs. We have results with astonishing 99.9% reduction!
Super Sub

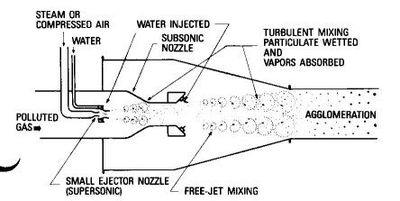

The Hydro-Sonic Super-Sub assembly is a small ejector assembly that may be added to either the Hydro-Sonic Single Nozzle or Tandem Nozzle scrubber to provide more scrubbing power. This unit provides the best of both worlds, capable of the extreme efficiencies of the Hydro-Sonic Steam-Hydro scrubber, but with the bulk of the scrubbing being done by the scrubber pressure drop. Just a small amount of steam or compressed gas addition greatly improves the scrubber efficiency.
This unit is very effective on particle sizes in the range of 0.001 to 1 microns in diameter. It also provides a meassure of turndown capability to the Hydro-Sonic Single Nozzle and Tandem Nozzle configurations by making up for loss of presssure-drop and scrubbing power in fixed throat scrubbers.
Another application where the Super-Sub assembly shines is a cyclical process where most of the time a fixed scrubbing efficiency is required, but for short periods more scrubbing power is needed. The Hydro-Sonic Super-Sub driver gas is turned on only when needed.
Yet another application where the Hydro-Sonic Super-Sub assembly might be used is where fan power is available but not sufficient to provide the scrubbing efficiency as needed. The Super-Sub driver gas is used to supplement the fan power. This is especially good for a scrubber retrofit with an existing scrubber.
